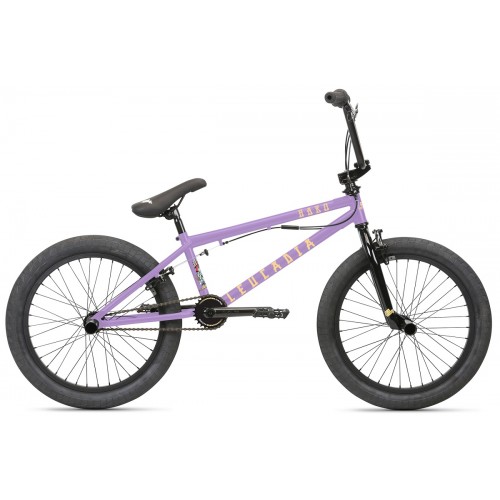

HARO LEUCADIA DLX 20'' 2022-MATTE LAVENDER
The Leucadia DLX has all the bells and whistles. Comes with front and rear brake, four pegs and a gyro system for that Nyquist inspired rider. Perfect bike to ride to school or hit up the local park or pump track. Comes with Haro's own custom design Cr-Mo 3-Piece tubular cranks and sprocket, as well as the new Haro 2.4" La Mesa tires Team grips and Topload molded stem
FEATURES
Hi-ten frame with 18.5" or 20.5" top tube
Full hi-ten fork with tapered legs
Hi-ten bars 8.5" with Haro 1978 alloy top load stem
Haro 1978 3-piece chromoly 8-spline 165mm (on 18.5") or 170mm (on 20.3") cranks with loose ball USA BB
25/9 gearing with sealed bearing 9T driver
Haro padded fully adjustable seat
Haro La Mesa tires 20x2.4" front/rear
Haro Team grips
Four pegs, front 990 brakes and Gyro
SPECIFICATIONS
FRAMESET
FRAME Full Hi-Ten Frame
FORK Full Hi-Ten 1 1/8" Threadless w/ Tapered Legs & 990 Mounts
COLORS Black, Grey, Matte Lavender
WEIGHT 29.2 lbs
DRIVETRAIN
CRANKS 3-pc Cr-Mo 8 Spline 165mm / 170mm, 25T Steel Sprocket
BOTTOM BRACKET Loose Ball American BB
SPROCKET 25T Steel
GEARING 25/9
PEDALS Low-Pro Nylon w/ Cr-Mo Axle, 9/16
CHAIN KMC 410
WHEELS
TIRES Haro La Mesa 20 x 2.4"
HUBS Front: Steel Shell 36h, Loose Ball Rear: Alloy Shell Cassette, 36h, Loose Ball w/ Sealed Bearing Driver Axle: 3/8" Front / 14mm Rear
FRONT HUB Steel Shell 36h, Loose Ball
REAR HUB Alloy Shell Cassette, 36h, Loose Ball w/ Sealed Bearing Driver
AXLE 3/8" Front / 14mm Rear
RIMS 20" Alloy 36h, Single Wall
BRAKING SYSTEM
BRAKE Tektro Alloy 990 U-Brake Front & Rear
BRAKE LEVER Haro 78 Alloy Hinged Lever Front & Rear
OTHER COMPONENTS
GRIPS Haro Team Grips
HANDLEBAR Full Hi-Ten, 7.5" Rise / 8.25" Rise
STEM Forged Alloy Top-Load, 50mm Ext.
HEADSET Threadless Loose Ball, 1 1/8"
SEAT Haro Padded Adjustable
SEAT POST Steel, 25.4mm
SEAT POST CLAMP Integrated
PEGS Steel, Two Pair
| SIZE | A. HEAD ANGLE | B. SEAT ANGLE | C. TOP TUBE | D. SEAT TUBE | E. CHAINSTAY | F. BB HEIGHT | G. STAND OVER |
|---|---|---|---|---|---|---|---|
| 18.5 | 74.5° | 70° | 18.5 (470 mm) | 10.2 (260 mm) | 13.7 (349 mm) | 11.5 (293 mm) | 21.5 (546 mm) |
| 20.5 | 74.5° | 70° | 20.5 (520 mm) | 10.2 (260 mm) | 13.7 (349 mm) | 11.5 (293 mm) | 21.5 (546 mm) |
